Name: Trinocular Binocular Head Stereo Optical Microscope Rohs A230906B4
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE|Rohs

Model Number : A23.0906-B4

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Applications : Industry|Medical

Drawtube : Binocular|Trinocular

product name : stereo zoom microscope

Theory : Stereo Microscope

magnification : 7-45x

Contact Now

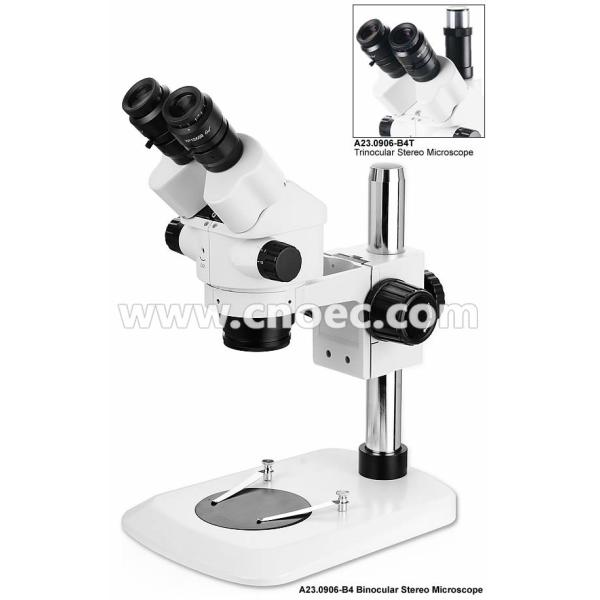

Trinocular / Binocular Stereo Optical Microscope Rohs A23.0906-B4

Description:

--0.7~4.5x Zoom Lens, with WF10x/20mm Eyepiece,
--Total Optical Magnification 7~45x
--Pole Stand, No Light Source

Specifications:

A23.0906-B4 Zoom Stereo Microscope, 0.7x-4.5x Specification		A23.0906-B4	A23.0906-B4T
Head	Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm	o
	Trinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm		o
Zoom Range	0.7~4.5x
Zoom Ratio	1:6.5
Eyepiece	WF10x/20mm, Both with Eye-cup
Magnification	7~45x, Up to 3.5~180x with Auxiliary Lens
Working Distance	100mm, With Standard 1x Lens
Field of View	1~95.2mm
Stand	Pole Stand B4, With Focusing Knob
Illumination	No Light Source
A23.0906-B4 Zoom Stereo Microscope, 0.7x-4.5x Optional Accessories
Eyepiece	WF15x/15mm	A51.0922-15
	WF20x/10mm	A51.0922-20
Auxiliary Lens	0.5x	A52.0927-05
	0.75x	A52.0927-75
	1.5x	A52.0927-15
	2.0x	A52.0927-20
LCD Monitor	Add A59.1130 LCD Camera, it will became A36.0901-B4 LCD Stereo Microscope
