OPTO-EDU A59.4971 Auto Focus EDF 4K HDMI USB LAN Digital Microscope Camera 8.3M Flourescent

Name: OPTOEDU A594971 Auto Focus EDF 4K HDMI USB LAN Digital Microscope Camera 83M Flourescent
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Quality OPTO-EDU A59.4971 Auto Focus EDF 4K HDMI USB LAN Digital Microscope Camera 8.3M Flourescent for sale

Brand Name : CNOEC, OPTO-EDU

Model Number : A59.4971

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T,West Union,Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Contact Now

High Content 4K 8.3M Digital Camera, 3840×2160@60fps, HDMI+USB+LAN Sync Output
Built-in Motor Moving Support Real Time Auto Focus, Easy Controlled By Mouse Wheel

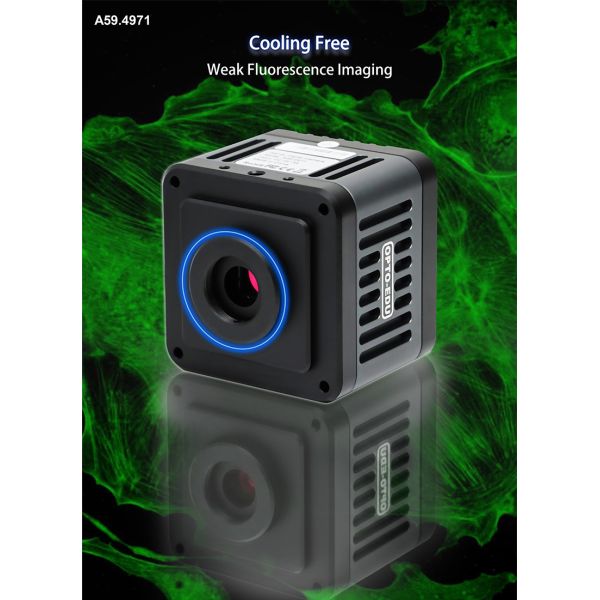

Cooling Free Special Designed For Long Time Weak Fluorescent Image Capture Work
Preset View Modes With Special Adjusted Parameters For Biological/ Industry / Fluorescent
Professinoal Software Support EDF, Large Image Stitching, Auto Edge Detection

OPTO-EDU A59.4971 Auto Focus EDF 4K HDMI USB LAN Digital Microscope Camera 8.3M Flourescent

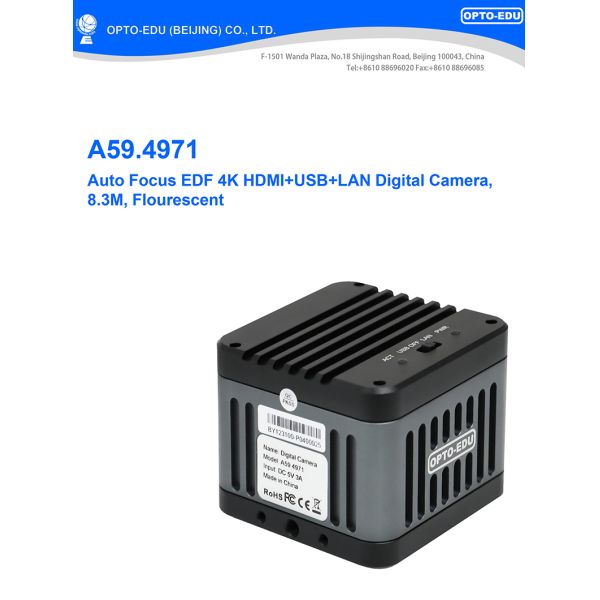

A59.4971 Auto Focus 4K HDMI+USB+LAN Digital Camera, 8.3M, Fluorescent

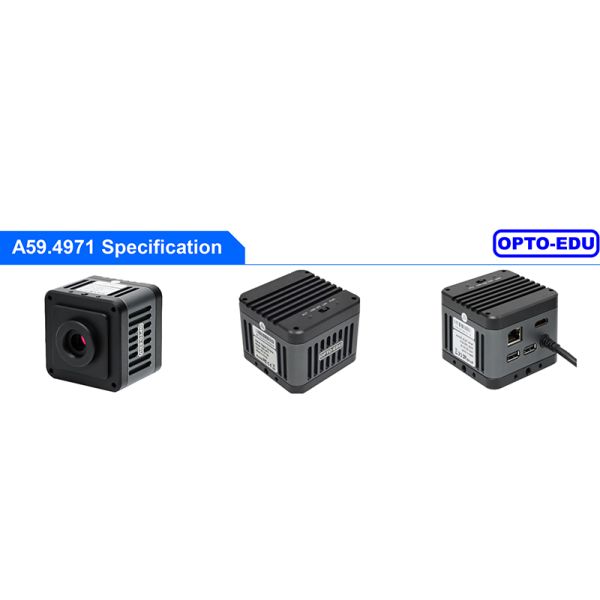

Camera	8.3M 4K Auto Focus Digital Camera
Sensor	1/1.8” SONY IMX678 CMOS
Resolution	3840×2160 @60fps
Pixel Size	2μm×2μm
Exposure Mode	Rolling Shutter
ISO Sensitivity	Equivalent to 100-12800
Spectral Response	400-650nm
Exposure Capability	Real-time Auto & Manual Adjustment
Exposure Time	10μs-10s
White Balance	Real-time Auto & Manual RB Adjustment
Power Supply	DC5V 2A
Bit Depth	12bit A/D Convertsion Bit Depth
Auto Focus	Built-in Motor Moving Support Auto Focus, Including
	--One Click Auto Focus
	--Real Time Auto Focus
	--Manual Focus Controlled By Mouse Wheel

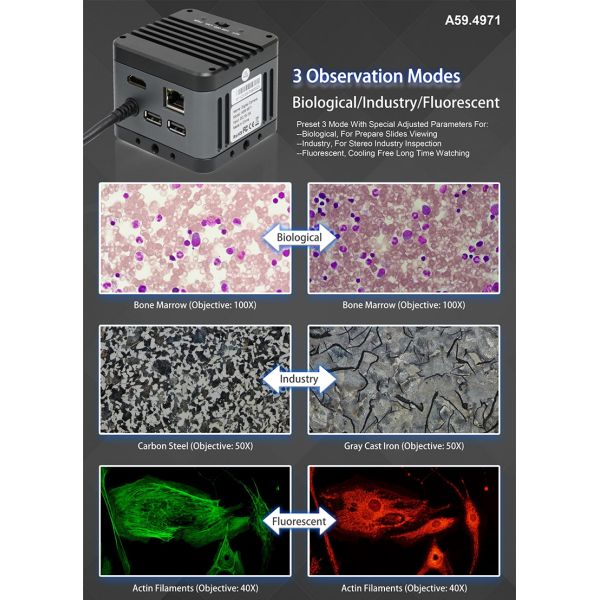

Viewing Mode	Preset 3 Mode With Special Adjusted Parameters For:

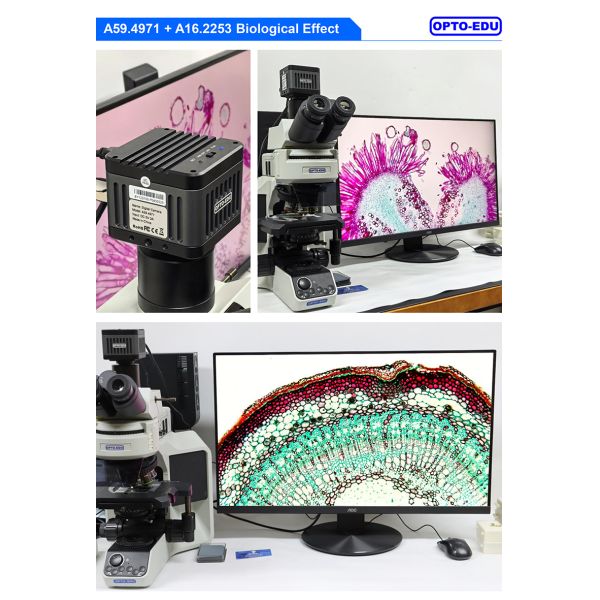

	--Biological, For Prepare Slides Viewing
	--Industry, For Stereo Industry Inspection

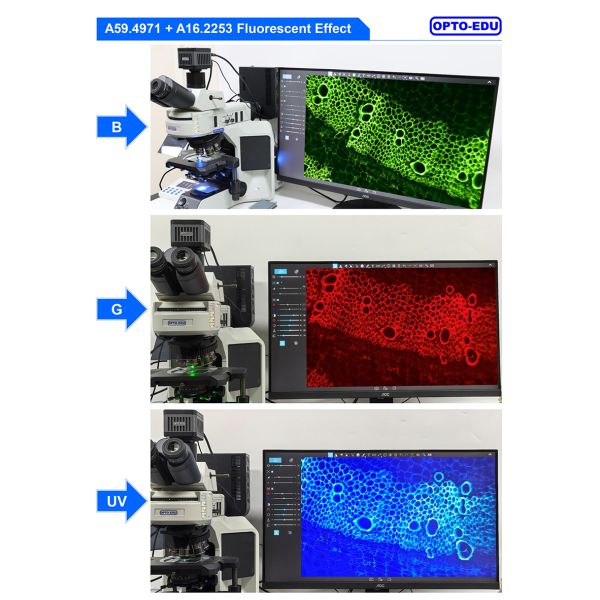

	--Fluorescent, Cooling Free Long Time Watching Weak Fluorescent Image

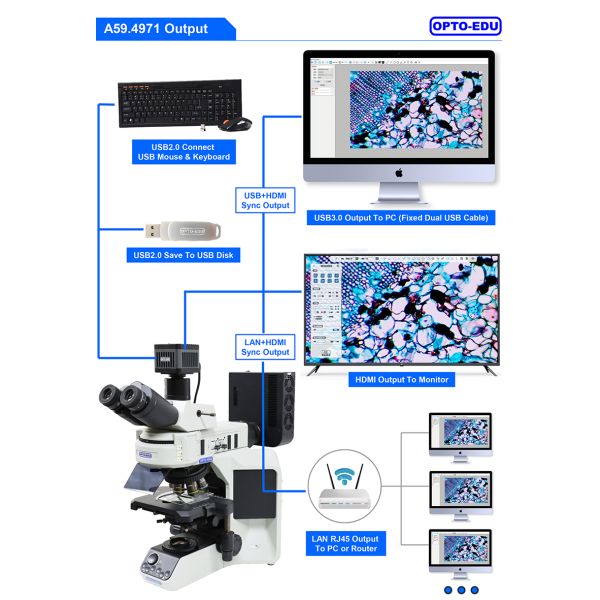

Data Interface & Output	--HDMI x1 Output To Monitor 4Kx2K @60Fps
	--USB3.0 x1 Output To PC (Fixed Dual USB Cable) 4Kx2K @60Fps
	--USB2.0 x2 Save To USB Disk, Connect USB Mouse & Keyboard
	--LAN RJ45 x1 Output To PC or Router4Kx2K @60Fps

	USB+HDMI Sync Output
	LAN+HDMI Sync Output
Software & Control	【Micro View】 Built-in Software For HDMI Output, Control By Mouse + Keyboard, Support Function With NO NEED For Computer:
	--Setting
	--Calibration
	--All Kinds Measure, Mark, Analysis Function
	--Photo, Video Capture & Store
	--Switch View Mode Among Biological/ Industry / Fluorescent
	--Auto Focus Drive By Built-in Motor, 3 Modes: One Time, Manual, Continous.
	--Auto EDF (Extended Depth of Field Fusion)
	--Auto Edge Detection

	【Micro Capture Pro】 Professional Software For PC Win11, Control By Mouse + Keyboard, Support All Above Functions, Plus:
	--Large Image Stitching, 3 Modes: Auto, Manual, Extend Column
Interface	Standard C-Mount Port, Work With Microscope 0.35x~0.55x C-Mount

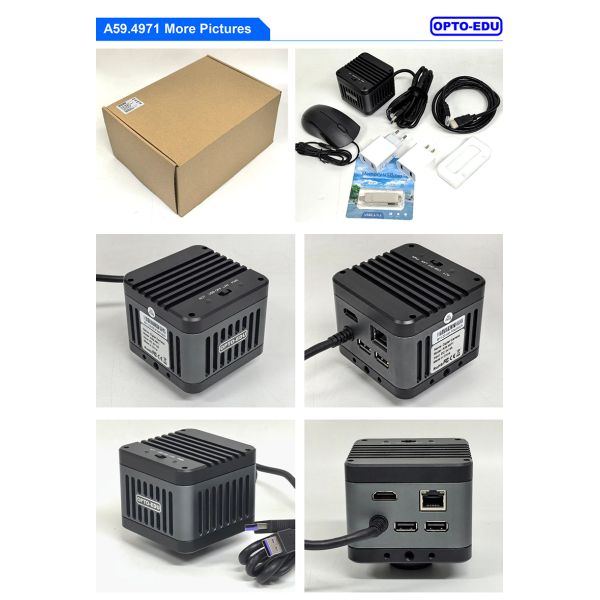

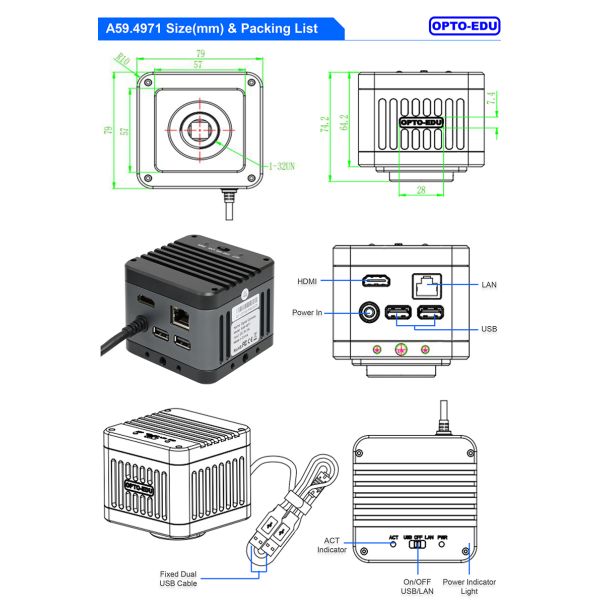

Packing List	--Digital Camera
	--Fixed Dual USB Cable (1 For USB3.0 Data Transfer, 1 For Power Supply)
	--Euro/USA Dual Port 5V3A Power Adapter
	--Opto-Edu USB Disk 8G
	--Opto-Edu Stage Micrometer
	--HDMI Cable
	--USB Mouse

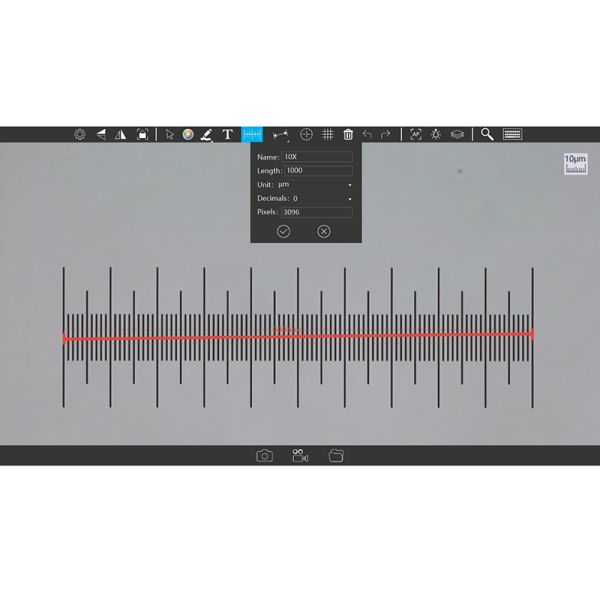

♦ Calibration Function

Use USB mouse & keyboard to easily create calibration for each objective!

♦ Measurement Function

All kinds measuring tools available, measure result can be shown by customized color & font text.

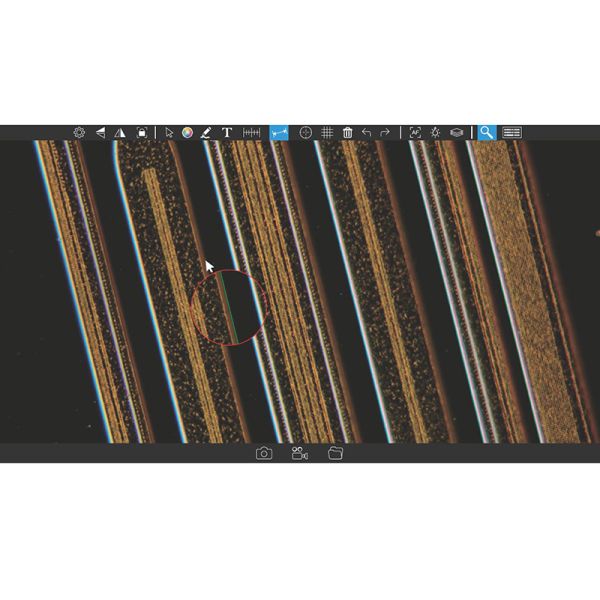

♦ Automatic Edge Detection

Auto enlarge and detect the edge to draw a fully complained shape easily

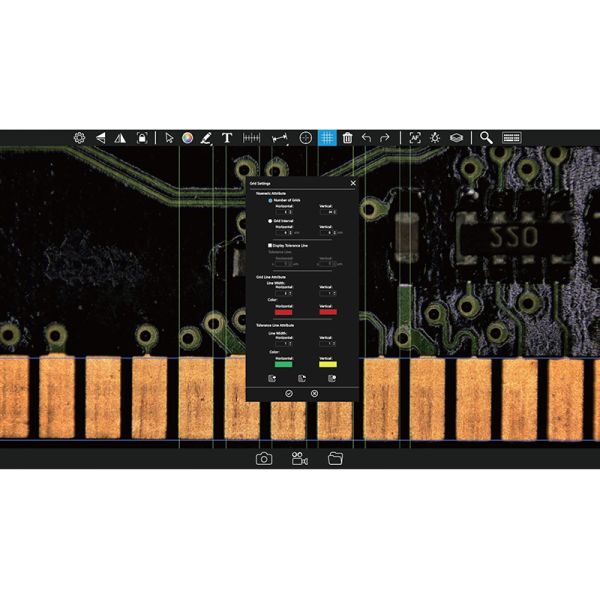

♦ Grid Measurement

Draw grid with customized color, line width to assist measure work

♦ Auto Focus

With built-in motor, support real time Auto Focus, 3 modes: Continues, One Time, Manual

♦ Illumination Controller

Software can control illumination angle and intensity.

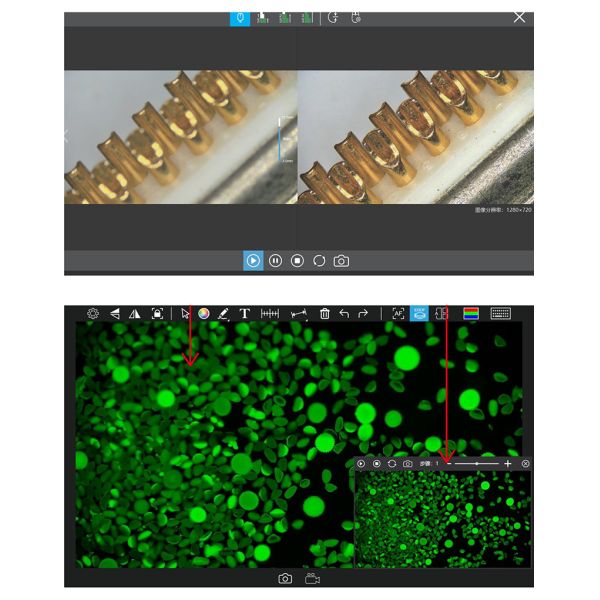

♦ EDF Function

Extended Depth of Field function and stack multi layers image to get a fully focused and clear image easily.

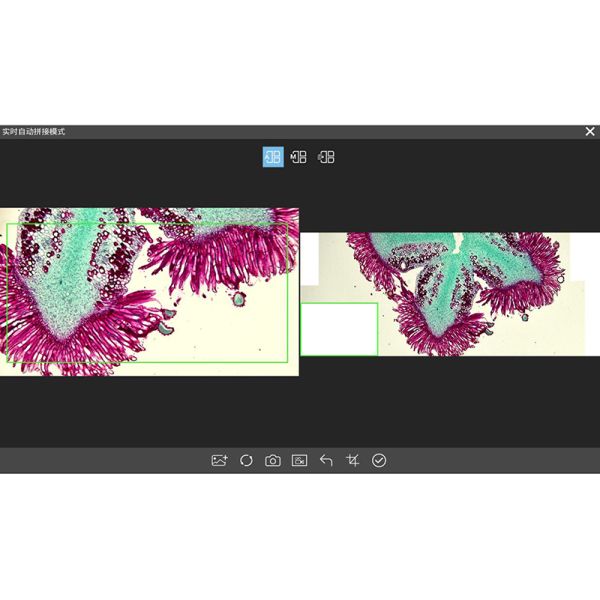

♦ Large Image Stitching

Support Auto Stitching, Manual Stitching, Extend Column Stitching to create large image

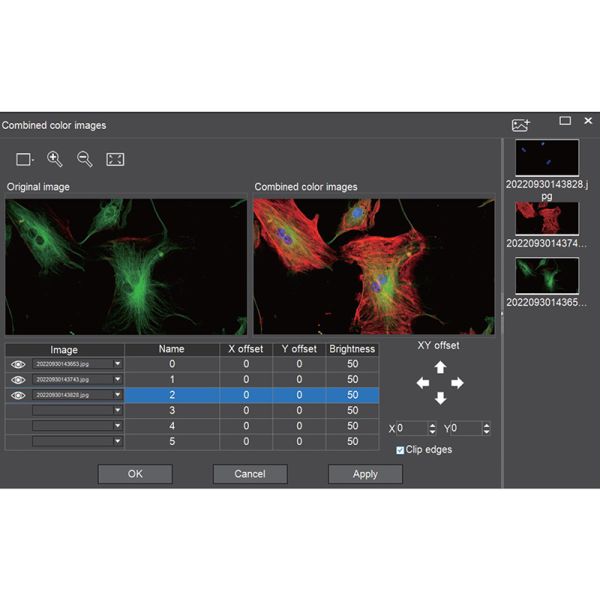

♦ Combined Color Images

Combine different fluorescent bands images to merge in one image.
